Version: 3.1.0

Setup

Installation

note

To install and set up AME, a user with the admin or sc_admin role is needed.

Install Alert Manager Enterprise as any other Splunk App on the Search Head. Directly install the App from Splunkbase or deploy the App to $SPLUNK_HOME/etc/apps.

In a Splunk Searchhead-Cluster environment, deploy the App using the Deployer.

On-Premises Search Heard Cluster Installation

To install AME on a Search Head Cluster:

  1. Copy the app to the deployer directory $SPLUNK_HOME/etc/shcluster/app directory
  2. Run splunk apply shcluster-bundle to apply the app
  3. Run the application setup
info

In AME Versions <2.1 app.conf and migrations.conf had to be redeployed after initial installation/updates. This is not necessary anymore. These files can be safely removed from the SHC Deployer from the local directory.

Application Setup

After the installation, the Setup and Migration page will list which tasks need to be completed in order.

For new installations, the AME Setup has to run first. After the setup, it may be required to run upgrade tasks. See the update page for more details.

Main Setup

The Main Setup will set up a default tenant.

info

A tenant consists of four components:

  • An index (created by an admin)
  • A KV Store Collection (automatically created by AME)
  • A HEC Collector (created by an admin)
  • Splunk Roles (automatically created by AME)

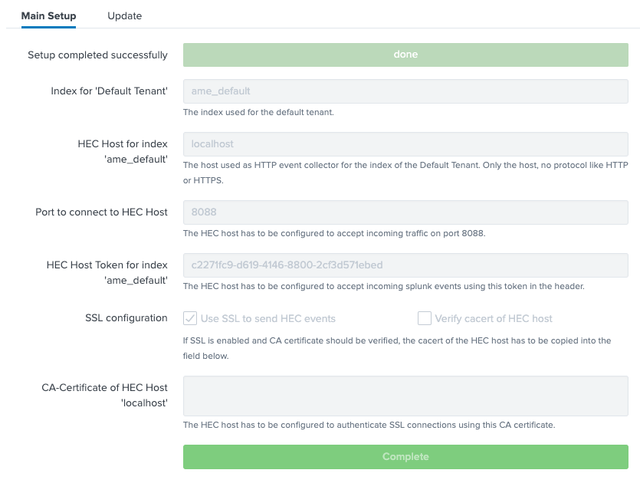

The setup looks as follows:

The setup page shows a green bar if the setup has been completed successfully.

The following information is needed to set up the tenant:

InformationDescription
IndexThe index used for the default tenant. As a recommendation, use ame_default if possible.
HostThe host used as HTTP event collector for the index of the Default Tenant. Only the host, no protocol like HTTP or HTTPS.
PortThe HEC host has to be configured to accept incoming traffic on port 8088. (default: 8088).
TokenThe HEC host has to be configured to accept incoming splunk events using this token in the header.A typical location of the config file to store this token on the HEC host is: $SPLUNK_HOME/etc/apps/alert_manager_enterprise/local/inputs.conf
SSL enabledThis will set https as a scheme to send events to the HEC host (recommended).
SSL verifiedTo verify the certificate of the HEC host, check this option and specify the cacert of the HEC host.
CA CertificateThis is the certificate of the HEC host found, e.g., at the location: $SPLUNK_HOME/etc/auth/cacert.pem
note

Changing the index name later requires Professional Services; therefore, be careful when defining the name.

Application Administrator Role

Alert Manager Enterprise has an application admin role, ame.admin. The best practice is to assign the role to the application owner.

info

For an overview of all AME role capabilities, see Role Overview.

caution

Do not assign an untrusted user the ame.admin role!

Finalizing the Installation

For Splunk Enterprise (On-Premises) installations, continue here

For Splunk Cloud installations, continue here

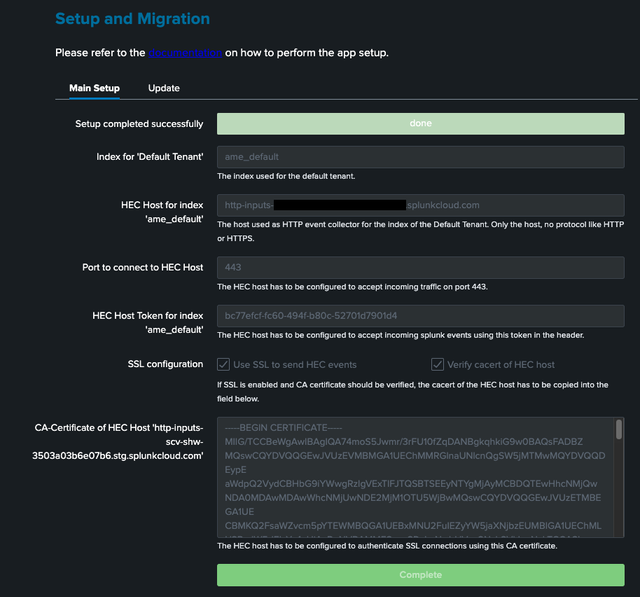

Splunk Cloud Deployment Instructions

For Cloud installations, it is sufficient to create an index and a HEC Token using the sc_admin account. For Splunk Cloud: Use the dedicated HEC Receiver as the HEC Host. Note that the HEC Port is 443 and runs on SSL.

Only enter the domain name:

  • AWS http-inputs-yourstackname.splunkcloud.com
  • GCP http-inputs.yourstackname.splunkcloud.com

Optionally, add the DigiCert Global Root CA Certificate for verification. Follow the Splunk Docs on how to create an event index.

Follow the Splunk Docs on how to create a HEC Token.

caution

Do not enable HEC Indexer Acknolwdgement in Splunk Cloud. This is not supported by Splunk Cloud. See https://docs.splunk.com/Documentation/SplunkCloud/latest/Data/AboutHECIDXAck

note

If you are on Splunk Cloud Classic Stack and no events are created, please open a ticket with Splunk Support to verify the Functional Inputs are enabled (CIA-8485)

Splunk Enterprise Deployment Instructions

For Splunk Enterprise (On-premises) AME offers different deployment options.

Splunk Enterprise HTTP Event Collector (HEC) Deployment Options

Configuration templates may be used for on-premises installation.

note

Enabling HEC Acknowledgment on the HEC receiver token is highly recommended.

caution

Add a props.conf configuration for HEC Receivers that do not reside on localhost to prevent Events from being truncated!

Search Head / Search Head Cluster with Local HTTP Event Collector and Log Forwarding

In this scenario, the Search Head/Search Head Cluster is the local HEC Receiver (localhost). The Search Head is configured to send its logs to the indexers (outputs.conf).

Search Head / Search Head Cluster with Remote HTTP Event Collector on Heavy Forwarder

In this scenario, the Alert Manager Enterprise app sends data to a remote Heavy Forwarder that acts as a HEC Receiver. The Heavy Forwarder sends its logs to the indexers.

Search Head / Search Head Cluster with HTTP Event Collector on Indexers with Load-Balancer

In this scenario, the Alert Manager Enterprise app sends its data to a load-balancer, which forwards the connection to Indexers with an HEC Receiver configured.

info

For Load-Balancers, the following HTTP connection settings are supported:

  • HTTP/1.1 with a connection header Keep-Alive (Splunk HEC default)
  • HTTP/1.1 with a connection header Close

Testing the HEC Reciever Connection

Follow the Health-Check guide in the Troubleshooting Guide under The HEC Connection does not work.

Modifying Settings

To modify app settings, click the Administration menu and open the Setup page. Alternatively, the settings can also be modified under the Tenant Settings.
